AIM 7" Dash MXG Strada Race Edition

AIM 7" Dash MXG Strada Race Edition

Regular price £1,458.00 GBP
Regular price Sale price £1,458.00 GBP
Sale Sold out
Tax included.

SKU: 100-0173

Link MXG Strada 7” dash, powered by AIM.

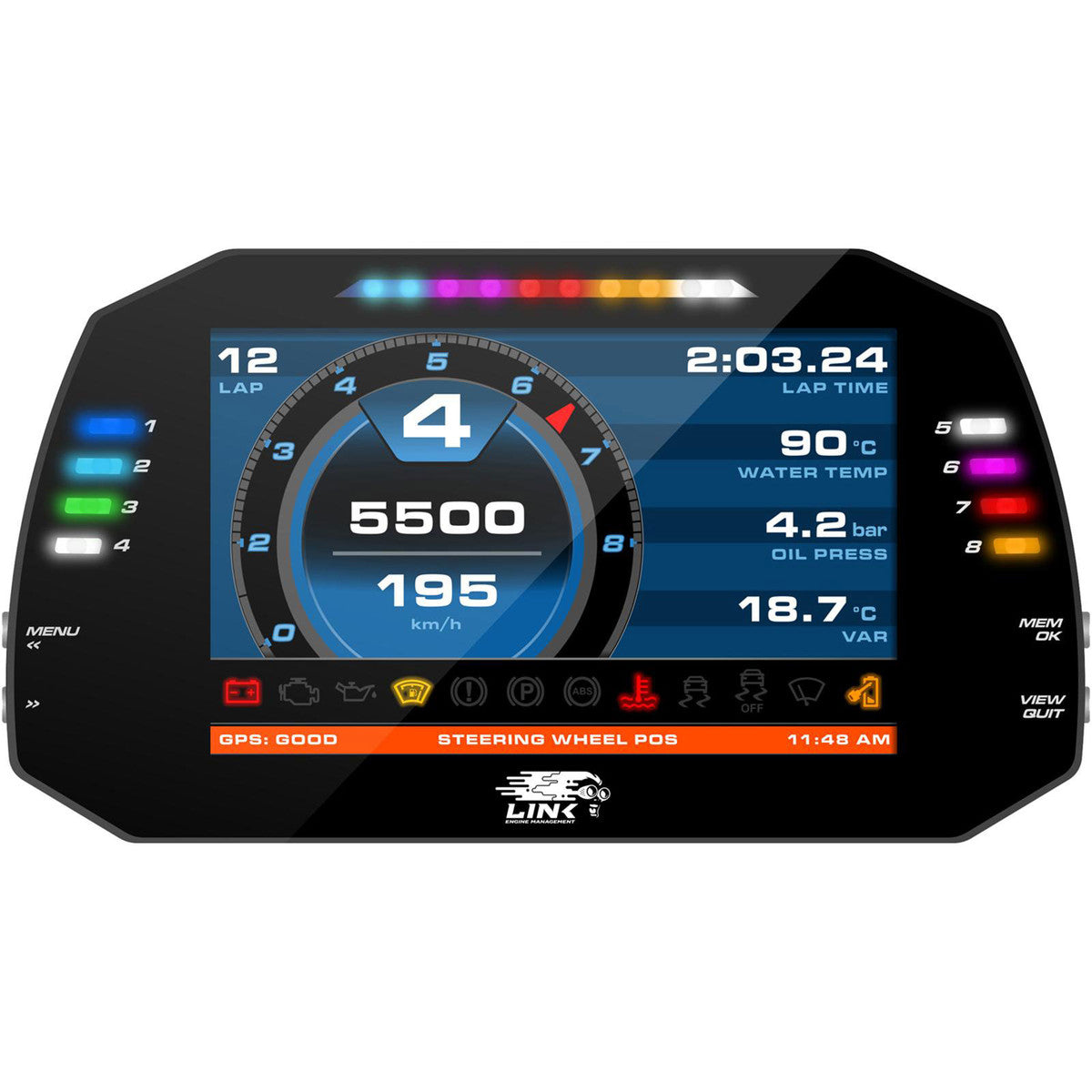

The Link MXG Strada Race Edition is a full colour, 7-inch dash display with 10 RGB shift lights and eight customisable alarm LED lights. The dash is pre-configured to work with all Link G4+/G4X Wire-In and Plugin ECU's. See features tab for more information.

This listing is for the 'Race edition', please see the 'Street edition' if you are looking for a dash for street purposes. This dash is also available in a 5” version.

The Link MXG Strada Race Edition dash features customisable shift lights, eight flexible alarm LED’s and a high contrast 7” TFT screen display. Visual quality is always optimal as the ambient light sensor auto-adjusts the brightness of the display.


The 10 multi-coloured RGB shift lights on the MXG Strada can be customised to your liking to define the RPM threshold for each single gear.


The same flexibility applies to the eight configurable RGB alarm LED's. You can configure them in order to turn them on/off depending on analog or digital inputs, ECU values, expansion values, math channels or, optionally, GPS information (GPS module available). You choose conditions and colours and you can select a solid alarm or flashing one and the flashing frequency. It is also possible to configure an accompanying text message along with the alarm priorities.


The dash is extremely easy to use, with buttons on the side to navigate through a library of preset display styles, depending on what information you want to see and in what layout. The screen can display all real-time information reading from the ECU such as RPM, speed, water temperature, oil pressure and much more.


The Link MXG connects directly to your Link ECU via the pin kit and wiring provided in the box.

The dash can be personalised via Link ECU PC Link and Aim Technologies Race Studio 3 software.


The Link MXS connects directly to your Link ECU via the pin kit and wiring provided in the box.

To use with plugin ECU’s - CANPCB and CANF connectors will be required (Purchased separately).


Included in the box:

Link MXG 1.2 Strada

USB cable

14 pin standard wiring

23 pin connector + contacts




GPS module available separately.


Power consumption: 400 mA

Dash Dimensions: 237×127.6×26 mm

Weight: 950 g

Waterproof: IP65

Display 7” TFT
Resolution 800x480 pixels
Contrast 1000:1
Brightness 700cd/m2 - 1,100 Lumen
Ambient light sensor Yes
Alarm LEDs 8 RGB freely configurable
Shift lights 10 integrated freely configurable RGB LEDs
CAN connections 2
ECU connections CAN
Analog inputs 8 fully configurable, max 1,000 Hz each
Digital inputs 1 speed input, coil RPM input
Digital outputs 1 (1 A max)
Second CAN Yes
Body Anodized Aluminum
Pushbuttons Metallic
Connectors 2 AMP connectors + 1 Binder connector
Power consumption 400 mA
Dimensions 237x127.6x26 mm
Weight 950 g
Waterproof IP65
