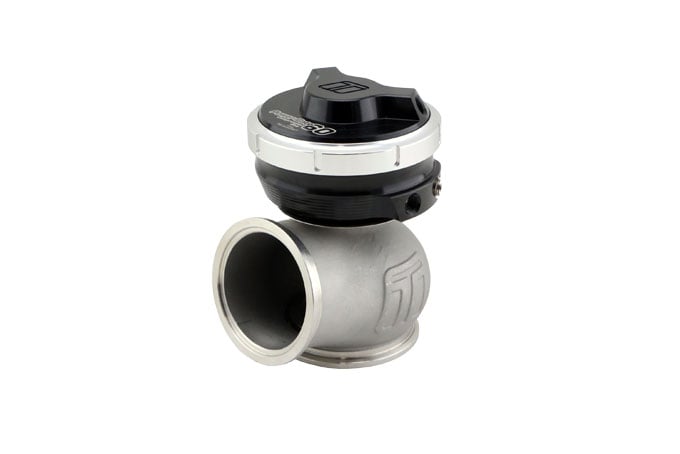

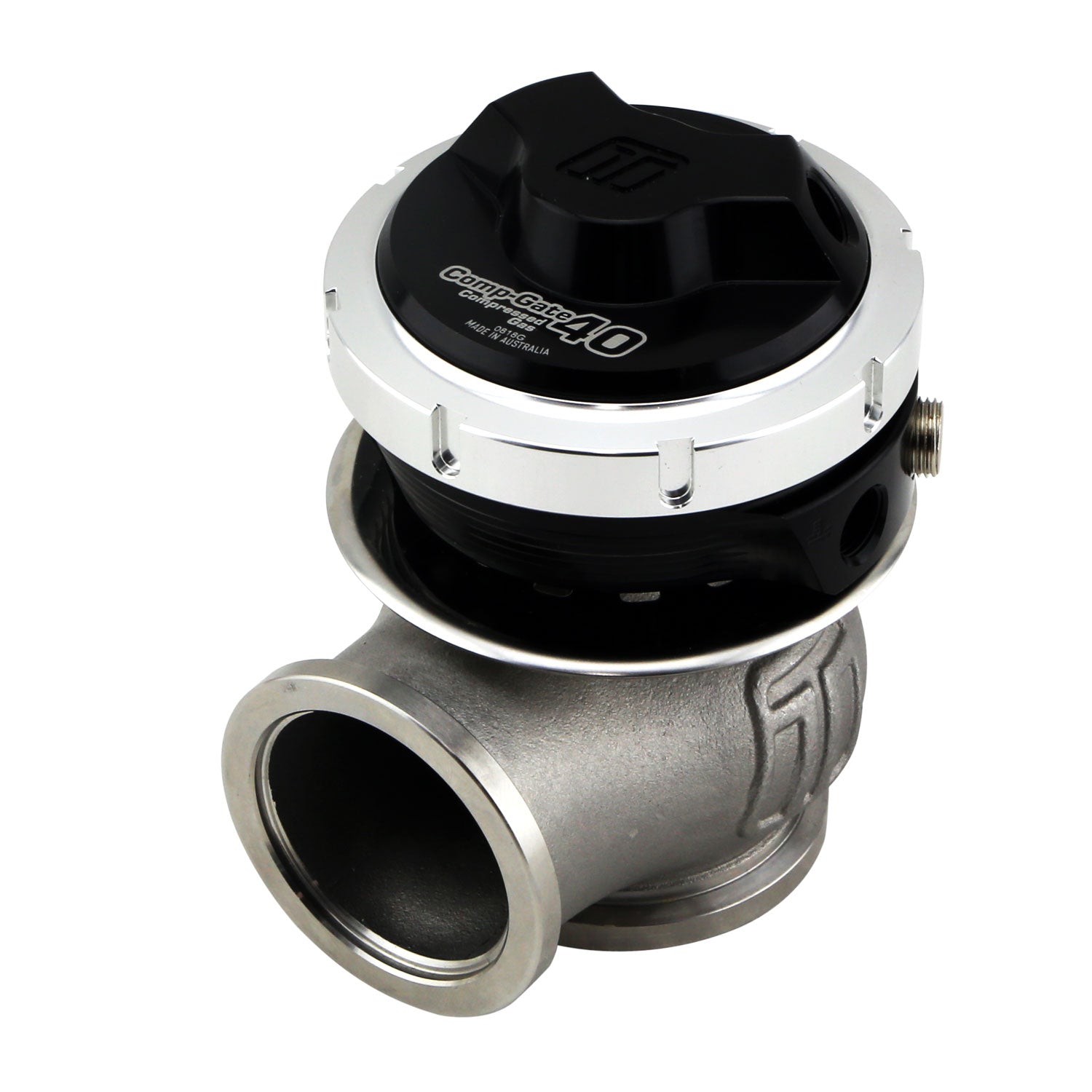

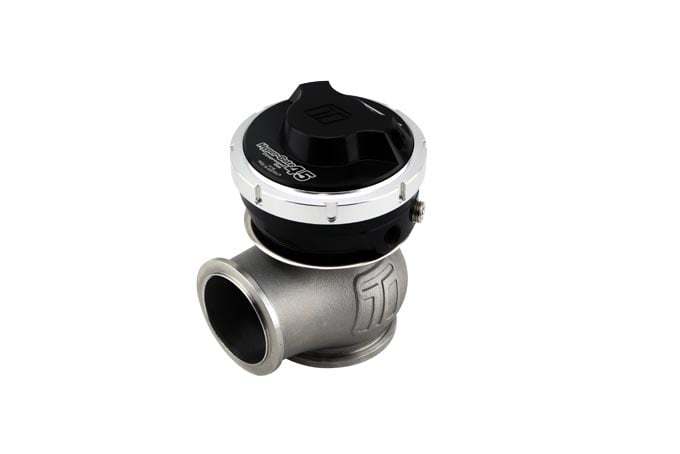

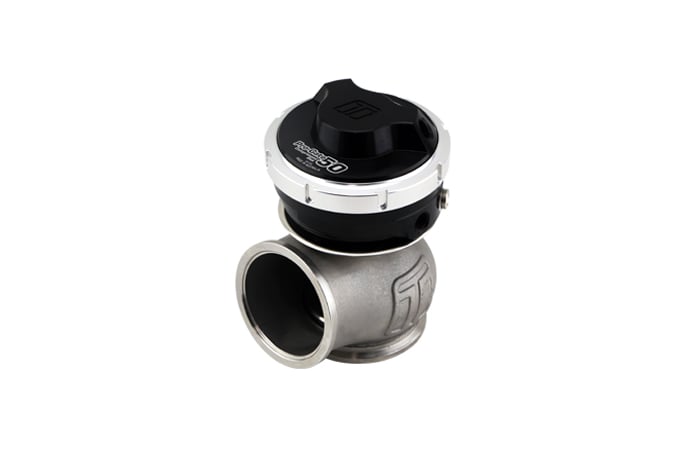

Turbosmart Compressed Gas Wastegates

Turbosmart Compressed Gas Wastegates

Regular price £403.14 GBP
Regular price Sale price £403.14 GBP
Sale Sold out
Tax included.

SKU: TS-0552-1202

Model

GenV Compressd Gas and C02 External Wastegate is designed for control strategies that require a large tuning window and large pressure differentials from the top to lower acutator housings. Where trasitional actuators on poppet style gaes are able to achieve around 2-3x base spring pressure, the CG / C02 Version are capable of extreme multiples of the base pressure through the use of additional reference signal, high pressure gas and C02.

The GenV CG and C02 variants are equipped with an inverted diaphragm which is capacle of high pressure and high pressure differentials (top to bottom) facilitating large tuning windows and the large boost-bandwidth associated with Drag Racing, Rally and Rally RX systems.

The GenV provides extensive user configurability, world-leading extended thermal performance, fatigue resistance and best-in-class flow performance for optimum control and longevity. The GenV External Wastegate Range is CFD optimized and real-world validated in-house for maximum flow and thermal management, the GenV range has more features, options and performance than any other gate. and includes a variable actuator cap and base for easy, 360-degree optional routing of reference hoses, strap-type V-band clamps, optional liquid-cooling provision, 1/8″ NPT reference ports and are provided with the full range of available springs.

SUPPLIED WITH
GenV Wastegate Unit
All Springs Included in Box
Spring Prefitted as per description
Valve Seat
Inlet and Outlet Weld Flanges & Clamps
Collar Tool
4 x 1/8 NPT Plugs
2 x 1/8 NPT Hose Tail Fittings
