Radium Bulkhead Harness External Universal Dual Pump

INTERNAL AND EXTERNAL BULKHEADS

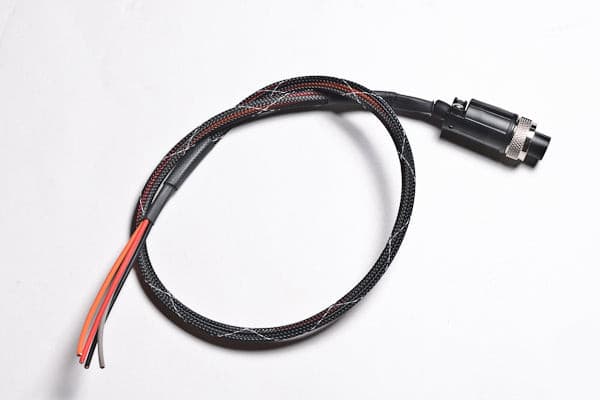

External harness wires use 24" long 10AWG TXL insulated wires. Internal harness use twin 16 AWG ETFE insulated wires.

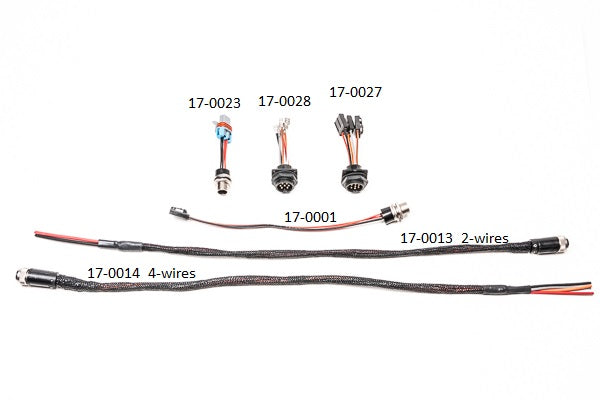

4-Pin metal shell bulkheads and flying lead connectors are available and can be referenced by the part numbers shown in the photo below.

7-Pin Plastic shell bulkhead connectors (shown below) are no longer used in Radium products, but limited quantities of 17-0027 and 17-0028 service parts are still available.
NOTE: If using Walbro "450" style pumps, purchase 17-0028 and cut off the blade terminals then install a compatible mating plug for the Walbro 450 connector. Radium does not have these plugs available

24" long 10AWG TXL insulated wires
