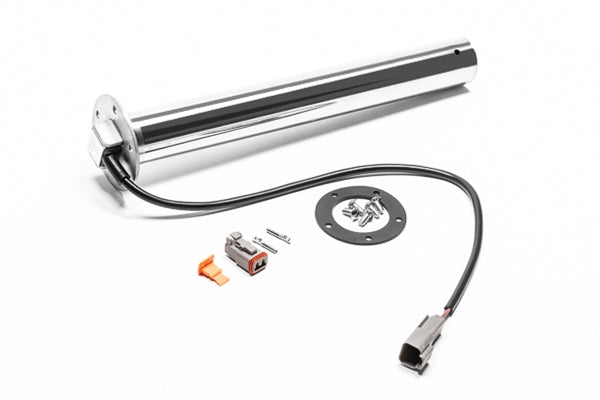

Radium Fuel Level Sender Shrouded 0-90 Ohm 8-Inch

Radium Fuel Level Sender Shrouded 0-90 Ohm 8-Inch

Regular price £215.60 GBP
Regular price £287.77 GBP Sale price £215.60 GBP
Sale Sold out
Tax included.

SKU: 20-0847-203

Radium Engineering fuel level sensor uses the standard SAE 5-bolt mounting pattern, extensively used with the Radium Fuel Cell Surge Tank

Fuel level sender for use in competition fuel cells. E85 compatible 0-90 Ohm output.

Full stainless steel sealed construction with magnetic float.
Suitable for use with gasoline, diesel, water, and all alcohol based fuels including methanol, ethanol, E85, etc.
NOTES:
-All level senders are 0 ohms empty to 90 ohms full (common with many aftermarket gauges.)
-Radium does not sell fuel level gauges, but a popular option is this Autometer Fuel Level Gauge
-To test the sender, measure the resistance between the two wires while tipping the sender to allow the float to move.

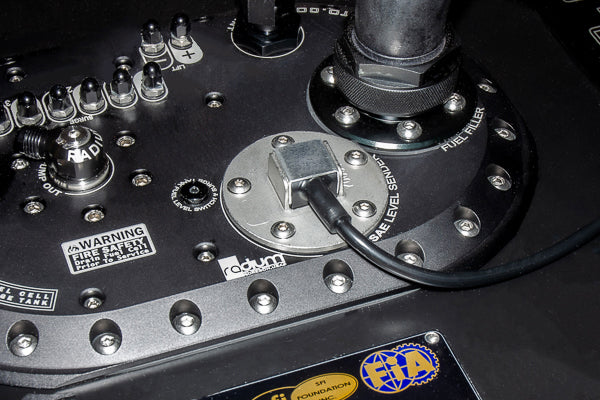

-If purchased with a Radium Fuel Cell Surge Tank (FCST), the sender will come pre-installed.

-If the output of this sender is not compatible with your OEM fuel gauge, consider a resistance signal converter
SPECIFICATIONS:
PROBE MATERIAL: 304 Stainless Steel
FLOAT MATERIAL: Plastic Buna-N
MOUNTING FLANGE: 5-Bolt SAE
MOUNTING GASKET: FKM

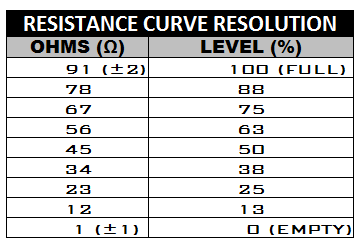

RESISTANCE: 0 (Empty)-90 (Full) Ohms
PVC WIRES: 18" (460mm) with PA Cover
CONNECTORS: Deutsch DT, 2P
OPERATING TEMP: -40F to +185F

ATTENTION:

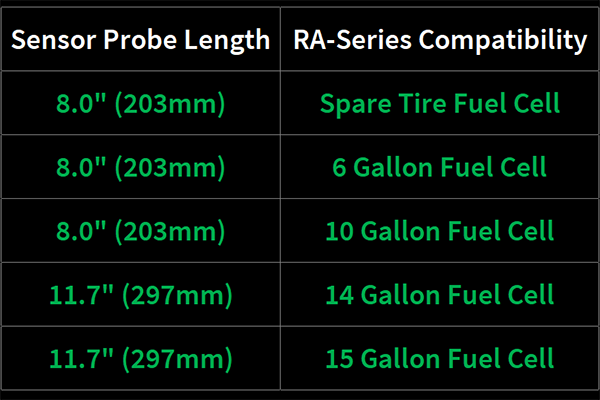

1. The fuel level float shroud from Radium 20-0847-XXX is only compatible with newer Radium FCSTs (20-099X-XX).
2. For previous Radium 20-049X-XX and 20-069X-XX FCST versions, the non-shrouded Radium 20-0747-XXX must be used.
3. Non-shrouded Radium 20-0747-203 and 20-0747-297 level senders are compatible with all Radium FCST part numbers.
