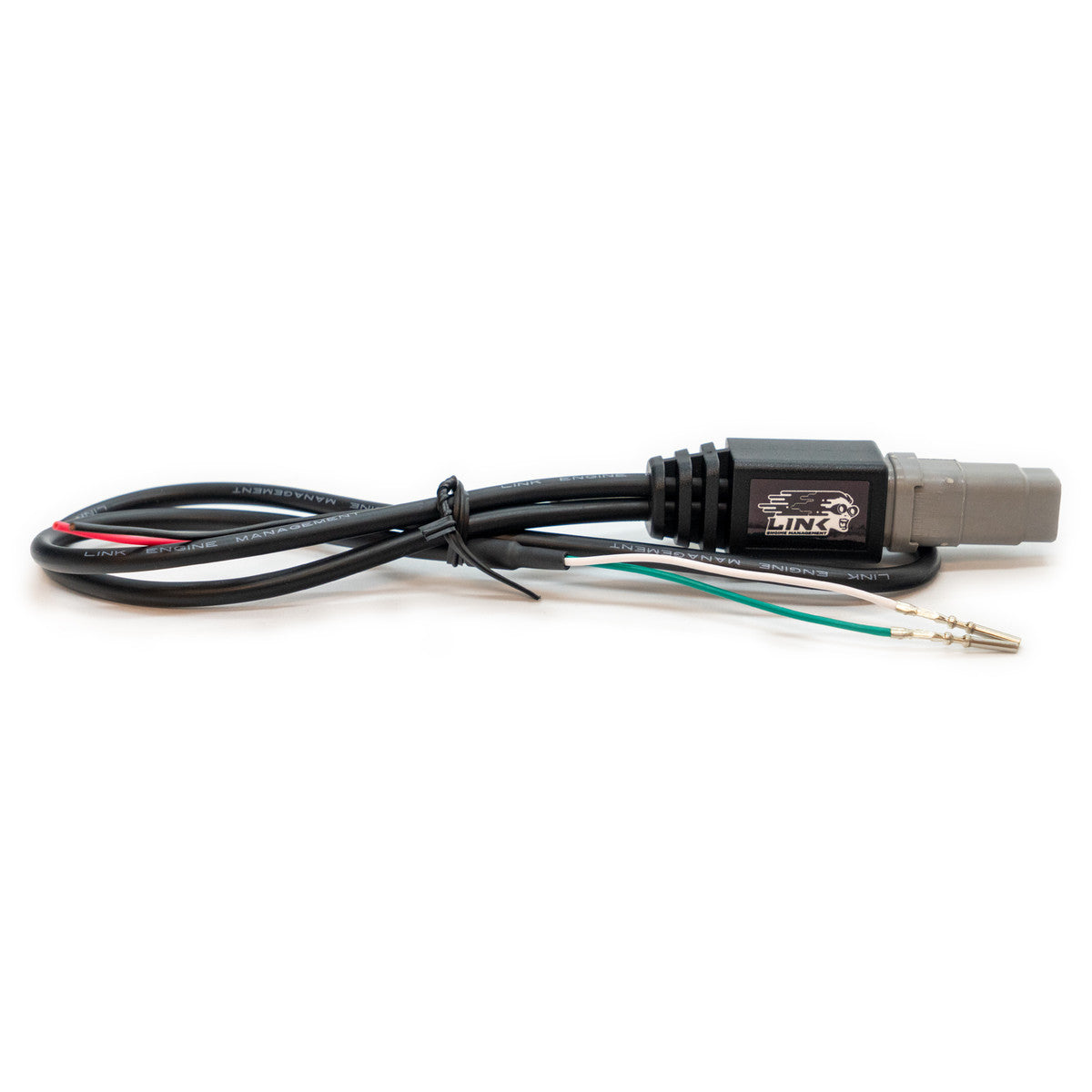

CANSS - CAN Connection Cable for G4X/G4+ WireIn ECU’s (ECU Header CAN)
CANSS - CAN Connection Cable for G4X/G4+ WireIn ECU’s (ECU Header CAN)
Regular price
£32.40 GBP
Regular price
Sale price
£32.40 GBP
Unit price
per
Tax included.
SKU: 101-0210
Couldn't load pickup availability
Required to add CAN communication to WireIn ECU's which have CAN accessible via the Header.
Compatible ECU's:
G4X/G4+ Atom (CAN1)
G4X/G4+ Monsoon (CAN1)
G4X/G4+ Storm (CAN2)
G4X/G4+ Xtreme (CAN2)
G4X/G4+ Fury (CAN2)
G4+ Force (CAN2)
G4+ Thunder (CAN2)
Specs
DTM4 Male to Flying leads. CAN H & L crimped with Superseal terminals. 12V & GND Flying Leads. Length: CAN Loom length 300mm (Flying leads 500mm long)
DTM4 Pin Out
Pin 4: CAN H
Pin 3: CAN L
Pin 2: Ground
Pin 1: 12V
Compatible ECU's:
G4X/G4+ Atom (CAN1)
G4X/G4+ Monsoon (CAN1)
G4X/G4+ Storm (CAN2)
G4X/G4+ Xtreme (CAN2)
G4X/G4+ Fury (CAN2)
G4+ Force (CAN2)
G4+ Thunder (CAN2)
Specs
DTM4 Male to Flying leads. CAN H & L crimped with Superseal terminals. 12V & GND Flying Leads. Length: CAN Loom length 300mm (Flying leads 500mm long)
DTM4 Pin Out
Pin 4: CAN H
Pin 3: CAN L
Pin 2: Ground
Pin 1: 12V
