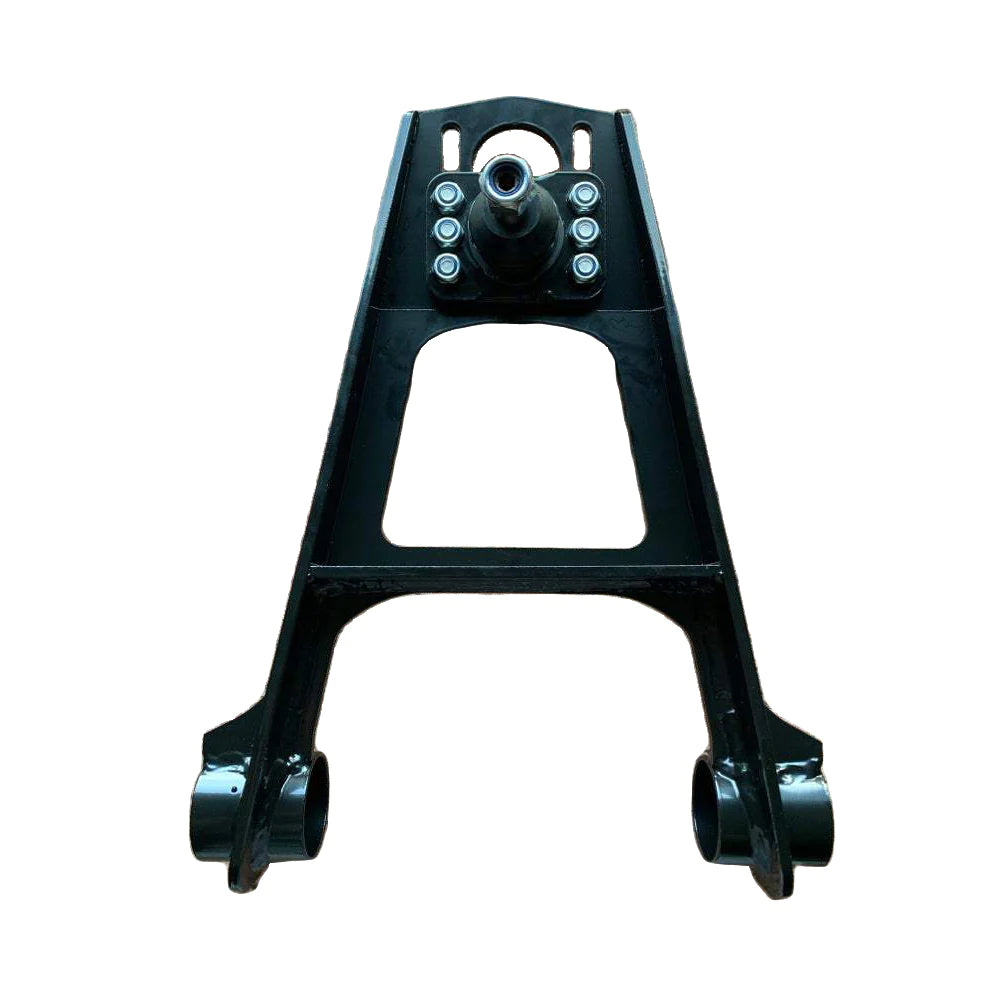

MX5 NA NB Adjustable Front Upper Camber Arm Set (2x Non-Handed)

Features:

• Adjustable from factory length to +40mm.
• Fit all NA & NB models - direct bolt-on.
• Additional camber adjustment via the sliding ball joint.
• Chassis rail clearance to cater for lowered cars avoiding damage to control arm/chassis.
• The narrow shape gives additional wheel clearance over other upper arms available.
• Extra room for suspension strut solving the clearance issue commonly suffered after fitting aftermarket suspension.
• No trimming of chassis or bodywork is required.
• Use OEM applicable bushes - Either buy your own separately or add Powerflex bushes below.

Fast Road -  HERE.

Black Series -  HERE.

Contents:

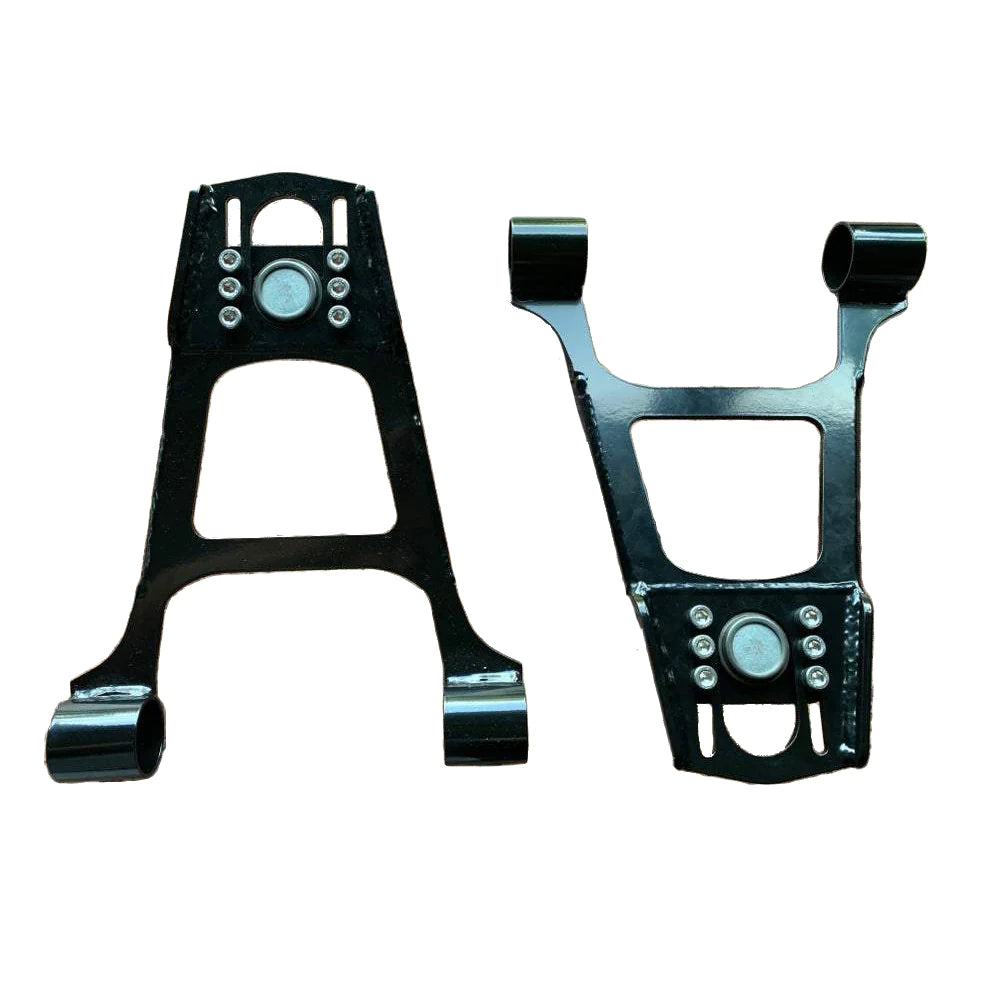

• 2x Front Upper Control Arms
• 2x Ball Joints and Slider Plates (pre-fitted)

Warnings:

• Fitting by an experienced mechanic is strongly recommended. Destroy Or Die are not responsible for any damage caused due to incorrect fitting or assembly.
• These FUCA will need to be installed using the outer ball joint positions or suitable wheel spacers when fitting 13" Wheels with an ET0 or higher offset.
• NB Knuckles require removing 3-4mm from the inner face of the upper ball joint mounting point to ensure proper thread engagement.
• Not for road use.

Suggested Alignment:

• Front:
• Camber -5
• Caster 5
• Toe 0
• Rear:

• Camber 0
• Toe 0

• Rear toe-in will make for snappier transitions, while front toe-out can aid with turn-in.
• However, our advice is to learn and experiment with different settings to suit the car, track and driving style.
