Radium Fuel Rail Nissan S14/S15 Sr20Det Top Feed Conversion

Radium Engineering Nissan Silvia fuel rail is specifically designed for the SR20DET S14/S15 OEM intake manifold. For the SR20DET S13 fuel rail kit, go HERE

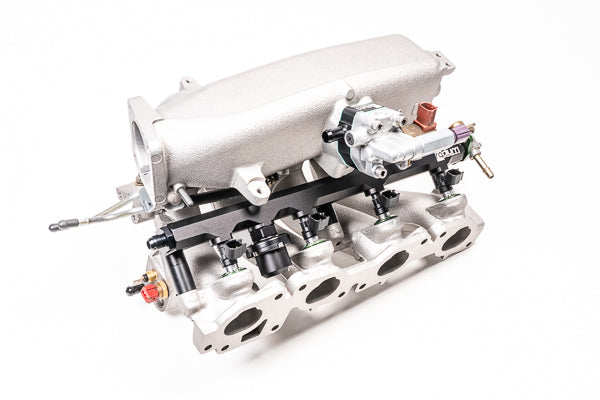

Manufactured with a 0.69" large internal bore, the fuel rail can support all necessary engine power requirements. The rail is CNC machined from solid 6061 aluminum and black anodized for a high quality surface finish. The included insulating spacers mount the rail to the OEM intake manifold bosses thermal isolation. The Radium fuel rail converts the OEM side feed fuel injector setup to top feed, allowing the use of high flow fuel injectors (not included). The fuel injector bores are 14mm ID. The kit is designed for specific upper and lower O-ring spacing, as depicted.

Below are some of the many fuel injectors that are a direct fitment:

Injector Dynamics ID1050-XDS-34-14-14
Injector Dynamics ID1300-XDS-34-14-14
Injector Dynamics ID1700-XDS-34-14-14
Injector Dynamics ID2600-XDS-34-14-14

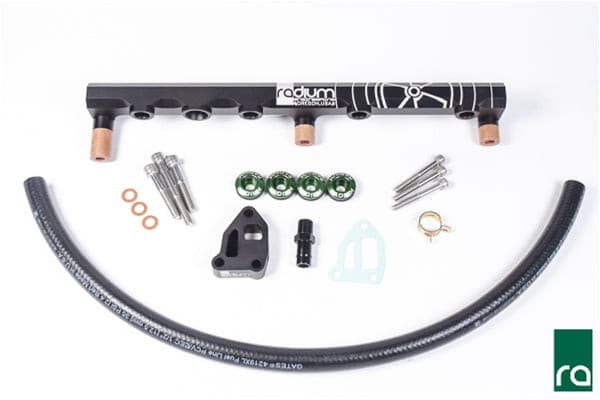

INCLUDED:

All parts listed below are included for a trouble and leak-free installation.

-Black Anodized Aluminum Fuel Rail
-Thermal Insulating Spacers (x3)
-Thermal Insulating Washers (x3)
-Radium 20-0161, Green Anodized Aluminum 25mm Injector Seats (x4)
-Radium 20-0162, Black Anodized Aluminum IACV Spacer Kit
-Radium 18-0014, IACV Gasket, SR20DET S14/S15 (x1)
-Black Anodized Aluminum IACV Barb Adapter
-Rubber Hose and OEM Clamp for IACV
-Stainless Steel M8x1.25 Mounting Bolts (x3)
-Stainless Steel M6x1 Mounting Bolts (x3)

.
